High Performance NW HW PW Series Diamond Core Drill Bits 101mm 116mm 130mm

1 pcs
MOQ
$200
السعر
High Performance NW HW PW Series Diamond Core Drill Bits 101mm 116mm 130mm
ميزات صالة عرض منتوج وصف طلب عرض أسعار
ميزات
مواصفات
Series: Wireline Diamond Core Bits
Model: Impregnated Diamond Core Bits
Drilling: Exploration Core Drilling
Drills: Wireline Core Drilling
Mining: Australia Mining
Exploration: Australia Exploration
Model No: Mining Exploration Core Drilling
Usage: Africa Mining
Applications: Copper Mining Drilling
تسليط الضوء:

Diamond Core Drilling Bits,Diamond Core Drill Bits For Rock

,

Diamond Core Drill Bits For Rock

معلومات اساسية
مكان المنشأ: Germany, US
اسم العلامة التجارية: ROSCHEN
إصدار الشهادات: ISO9001
رقم الموديل: AW, BW, HW, NW, PW, SW, ZW
شروط الدفع والشحن
تفاصيل التغليف: wooden, carton box
القدرة على العرض: 300 pcs per 20 days
منتوج وصف

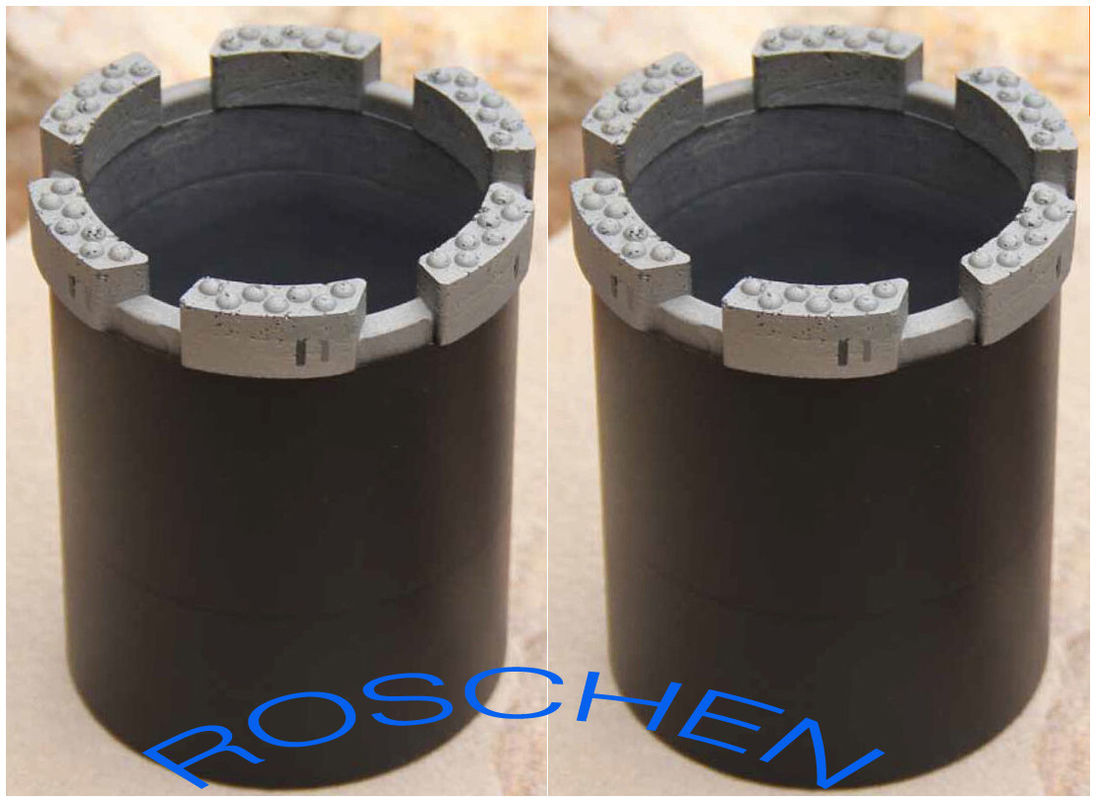

High Performance NW HW PW Series Diamond Core Drill Bits 101mm 116mm 130mm





CSUMX DIAMOND CASING SHOE

CSUMX Diamond Casing Shoe NW HW PW Series for high performance penetration rate for exploration core drilling


Details introduction:

CSUMX
The CSUMX casing shoe is designed for all exploration and geo-technical casing applications. The ability to drill faster with high penetration rates and outperform existing shoe technology in a wide range of ground formations makes the CSUMX ideal for customers seeking a cost-effective alternative to their
current shoe selection.


UMX
Roschen’s extensive drilling experience and history of engineering are the drivers behind the incredibly innovative UMX impregnated casing shoe. By combining patented technologies with customer collaboration, Roschen’s engineers have designed the highest performing casing shoes available.


Ultramatrix
CSUMX impregnated casing shoes feature Roschen’s patented Ultramatrix. Ultramatrix technology enables the use of large synthetic diamonds with an innovative formula, increasing penetration through various ground formations while providing longer shoe life. This optimization couples the high penetration capability with longer shoe life and allows the CSUMX to cut easily from one ground formation to another.


Leading Technology
The CSUMX also features the unique Razorcut design on the face of the bit. This speeds exposure of the diamonds and enables the shoe to cut even in the softest overburden.


The arrangement of the Twin-Taper waterways dramatically improves surface flushing, which keeps the shoe face clear and reinforces the inner-diameter of the shoe.



Features:

1
UMXCROWN
Patented technology enables the use of large, synthetic diamonds, increasing penetration through changing ground conditions and provides longer bit life


2
RAZORCUT FACE DESIGN
Patented design is ready to cut right “out of the box” and improves tracking and balance in the hole


3

TWIN-TAPER WINDOW
Dramatically improves flushing, forcing debris through the windows while keeping the bit face clear and reinforcing the inner-diameter


Specifications:



56mm, 66mm, 76mm, 86mm, 89mm, 101mm, 116mm, 130mm
AQ, BQ, NQ, HQ, PQ/ BQ3, NQ2, NQ3, NQTT, HQ3, HQTT, PQ3, PQTT, T2 46, T2 56, T2 66, T2 76, T2 86, T2 101

NMLC, HMLC, LTK48, LTK60, BGM, NGM, ADBG, TBW, TNW, ATW, BTW, NTW, NXD3, AX, NX, NXC, AXT, T6H, 4 9/16, NWD4, 412F, SK6L146, TT46, TB56, TS116, CHD101.

AW, BW, HW, NW, PW, SW, ZW






CORE BARRELS, BITS, RODS, CASING AND TOOLS

Roschen offers a variety of high quality coring drilling systems which include core barrels, core diamond drill bits, drill rods, casings and more.



Roschen Wireline Core Barrel System Sizes:


SIZE CORE Ø HOLE Ø
AQTK 35.5 mm (1-3/8 in) 48 mm (1-7/8 in)
BQTK 36.4 mm (1-7/16 in) 60 mm (2-3/8 in)
BQTK 40.7 mm (1-5/8 in) 60 mm (2-3/8 in)
NQ 47.6 mm (1-7/8 in) 75.7 mm (3 in)
NQTK (NQ2") 50.6 mm (2 in) 75.7 mm (3 in)
NQ3 45 mm (1-3/8 in) 75.7 mm (3 in)
HQ3 63.5 mm (2-1/2 in) 96 mm (3-3/8 in)
HQ3 61.1 mm (2-3/8 in) 96 mm (3-3/8 in)
PQ 85 mm (3-3/8 in) 122.6 mm (4-7/8 in)
PQ3 83 mm (3-1/4 in) 122.6 mm (4-7/8 in)













Further exploration drilling products information, please don't hesitate to contact us.
