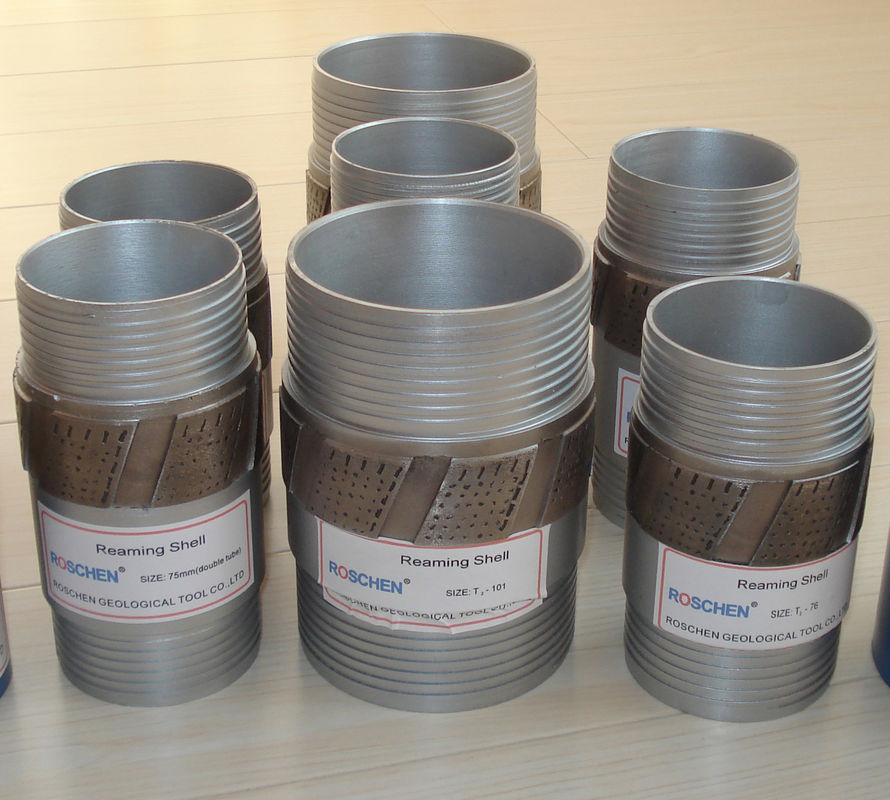

NQ HQ / T2 76 / T2 86 Reaming Shell Diamond Core Drill Bits For Geological Exploration
Reamer Tools Diamond Core Drill Bits Reaming Shells NQ HQ PQ
Impregnated Diamond Drilling Tools - Reaming Shells For Geological Exploration
Impregnated Diamond Drilling Tools - NQ HQ , T2 76 , T2 86 Reaming Shells For Geological Exploration core drilling
| Features: | Natural Or Synthetic Diamond | Product Name: | Reaming Shells |
| Machine Type: | Drilling Tools | Type: | Core Drill Bit,Construction Tool Parts |
| Application: | Geological Exploration, Mining Exploration, Hydrogeological Exploration And Oil, Gas, Exploration | Model Number: | BQ,NQ,HQ,RQ,PQ,T2,T6,146,TT48 Etc |
Impregnated Diamond Drilling Tools - Reaming Shells For Geological Exploration
Diamond Reaming Shells are very important reamer tools to be used together with bits in core drilling. Its main functions are maintaining the borehole gage, improving drill rods stability and protecting lower part of drill rod from excessive wear.
Helical type reaming shells provides good passages for water flowing, the matrix is wear proof and its service life is long.
“ROSCHEN” brand has a high reputation in worldwide.
Reaming shells are widely used for geological exploration, mining exploration, hydrogeological exploration and oil, gas, exploration etc.
Diamond Reaming Shells are very important reamer tools to be used together with bits in core drilling. Its main functions are maintaining the borehole gage, improving drill rods stability and protecting lower part of drill rod from excessive wear.
Our reaming shells provides good passages for water flowing, the matrix is wear proof and its service life is long.
Five types of reaming shells for you to choose from:
Surface set Diamond Type
Impregnated Diamond Type
Tungsten Carbide Type
PCD Type
Electroplated Diamond Type
Size Available:
"Q" Series: AQ, BQ, NQ, HQ, PQ (Front end & Back end Type)
T Series: T36, T46, T56, T66, T76, T86
WF Series: HWF, PWF, SWF, UWF, ZWF
WT Series: RWT, EWT, AWT, BWT, NWT, HWT (Single Tube/Double Tube)
WG Series: EWG, AWG, BWG, NWG, HWG (Single Tube/Double Tube)
WM Series: EWM, AWM, BWM, NWM
T2/T6 Series: T256, T266, T276, T286, T2101/T676, T686, T6101, T6116,
T6131, T6146, T6H
Others: NMLC, HMLC, LTK48, LTK60, TBW, TNW, ATW, BTW, NTW, HTW, AQTK
NXD3, NXC, T6H, SK6L146, TT46, TB56, TS116, CHD101, EXT
Wireline Diamond Bit and Reaming Shell
Selection Table:
|
Standard |
Category |
Commonly Used Sizes |
|
Chinese Standard |
Single Tube |
Ф36, Ф46,Ф48,Ф56,Ф59,Ф60,Ф66,Ф75,Ф76, Ф77,Ф78, Ф91,Ф92, Ф93, Ф94, Ф95, Ф96, Ф98, Ф100, Ф110, Ф112, Ф130, Ф132,Ф152, Ф171, Ф173, Ф225, Ф245, Ф279, Ф325 |
|
Double Tub/SD Double Tube |
Ф36,Ф46,Ф48, Ф56, Ф59, Ф60, Ф66, Ф75, Ф76, Ф77, Ф91, Ф94, Ф110, Ф130, Ф150 |
|
|
Wire-line |
S56, S59, S60, S76, S77 |
|
|
International Standard |
“T2”,“T6”, “ T” Series |
T2-56, T2-66, T2-76, T2-86, T2-101, T6-86, T6-101, T6-116, T6-131, T6-146, TB56, TBW, TNW, TS-116, T6-H |
|
“Q” Series |
AQ, BQ, BQ3, NQ, NQ2 ,NQ3, NQTT, HW, HQ3, HQTT, PQ, PQ3, PQTT, AQTK, BQTK |
|
|
Others |
ATW, BTW, NTW, NMLC, HMLC, NX-D3, NXC, NX, AX, AXT, LTK48, BGM, ADBG, |
Remarks: Apart from above commonly used products, various nonstandard and special products are all availableon customer’ request.
