Core Lifter / Core Lifter Case for NQ HQ Wireline Core Drilling Equipment

10 pcs
MOQ
$1
السعر
Core Lifter / Core Lifter Case for NQ HQ Wireline Core Drilling Equipment
ميزات صالة عرض منتوج وصف طلب عرض أسعار
ميزات
مواصفات
Name: Core Barrel
Type: Conventional Core Barrel
Style: Wireline Core Barrel
Materials: European 4145 Steel Casing
Model: Q Series Core Barrel NQ, HQ, PQ Wireline Core Barrel
Metric: Bristish Metric Core Barrel
Standards: T 2-66, T 2-76, T 2-86, T 2-101, T 2-116; T6-76, T6-86, T6-101, T6-116
Core Barrels: Boart Longyear Core Barrel
Sweden Core Barrel: Core Barrel, Atlas Copco Core Barrel
Tools: Wireline Coring Tools
Q 3 Series: HQ 3, NQ 3, PQ 3 Core Barrels
Triple Core Barrel: BMLC, NMLC, HMLC Triple Tube Core Barrels
تسليط الضوء:

أنبوب الثلاثي الأساسية برميل,البرميل الأساسية المرتبطة

,

wireline core barrel

معلومات اساسية
مكان المنشأ: Germany
اسم العلامة التجارية: ROSCHEN
إصدار الشهادات: ISO, API
رقم الموديل: AQ, BQ, NQ, HQ, PQ, T36, T46, T56, T66, T76, T86, HWF, PWF, SWF, UWF, ZWF, RWT, EWT, AWT, BWT, NWT, HWT (Single Tube/Double Tube), EWG, AWG, BWG, NWG, HWG (Single Tube/Double Tube), EWM, AWM, BWM, NWM, T256, T266, T276, T286, T2101/T676, T686, T6101, T6116
شروط الدفع والشحن
تفاصيل التغليف: carton box
القدرة على العرض: 5000 pcs
منتوج وصف

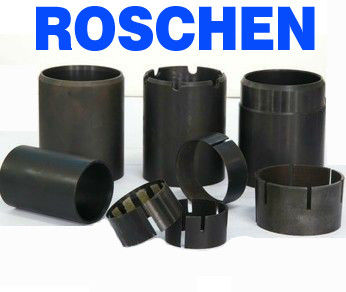

Core Lifter / Core Lifter Case for NQ HQ Wireline Core Drilling Equipment




Core Lifter / Core Lifter Case Wireline Core Barrel , Wireline Core Drilling Equipment





Specifications:
1. Wireline Core barrel Flutted core lifter
2. High quality and long life service
3. Professional production
4. Whole-set drilling tools
5. Longer lifetime
6. Electroplated Diamonds on inside



Model ID(mm) OD(mm)
HQ3 core lifter 60.7 66.5
HQ core lifter 62.67 68.94
HQ3 core lifter case 62.7 71.6
HQ core lifter case 65.56 73.23
PQ3 core lifter 82.56 91.28
PQ core lifter 84.53 91.28
PQ3 core lifter case  86.8 92.5
PQ core lifter case  86.8 96.4



Features:


The whole set drilling tools we supply:



Stop Ring, Core lifter, Core lifter case, Locking coupling, adaptor coupling, Landing ring, Inner tube Stabilizer, overshot, Casing tube, Casing bit, water swivel, hoist plug, fishing tools,wrenches, sub adaptor, foot clamp.



Wire-line core drilling tools can lift core from drill rods without picking up coring system. A complete set of wire-line drill tools include: Core barrel assembly, overshot assembly, drill rods, holding dog, hoisting plug, circle wrench etc. It has some advantages such as high penetration rate, high penetration rate, high core recovery ratio, long bit life and lower labour intensity. The advantages can get more clear with the increasing of drill hole depth.





Wrenches

Wrench is used tighten or loose the tubes during drilling. Size available: wireline inner/outer tube wrenches, pipe wrenches, circular wrenches and rod wrenches



Sub adapter

Adaptors are made of high quality alloy steel. Connections can be made as per client's request.



Foot clamp

Foor clamp is used to prevent drill rods slipping down the borehole when lowering or extracting.



Water swivel

The water swivel is connected between pump and the top of the drill rod string by a high pressure hose, alloqing water or other drilling fluids to be pumped through the rod string.



Hoist plug

A hoist plug is the connecting link between hoisting cable and drill rods.



Finshing tools

Fihshing tools are used for recovery of drill pipe, casing when the accidents happen during drilling
