T6 Series Double Tube Core Barrel For Exploration Core Drilling , T6-101 T6-116

1 sets
MOQ
Negotiate
السعر
T6 Series Double Tube Core Barrel For Exploration Core Drilling , T6-101 T6-116
ميزات صالة عرض منتوج وصف طلب عرض أسعار
ميزات
مواصفات
Name: Core Barrel
Type: Conventional Core Barrel
Style: Wireline Core Barrel
Materials: European 4145 Steel Casing
Model: Impregnated Diamond Core Bits
Metric: Bristish Metric Core Barrel
Standards: T 2-66, T 2-76, T 2-86, T 2-101, T 2-116; T6-76, T6-86, T6-101, T6-116
Core Barrels: Boart Longyear Core Barrel
Sweden Core Barrel: Core Barrel, Atlas Copco Core Barrel
Tools: Wireline Coring Tools
Q 3 Series: HQ 3, NQ 3, PQ 3 Core Barrels
Triple Core Barrel: BMLC, NMLC, HMLC Triple Tube Core Barrels
Series: Wireline Diamond Core Bits
Drilling: Exploration Core Drilling
Drills: Wireline Core Drilling
Mining: Australia Mining
Exploration: Australia Exploration
Model No: Mining Exploration Core Drilling
Usage: Africa Mining
Applications: Copper Mining Drilling
تسليط الضوء:

أنبوب الثلاثي الأساسية برميل,البرميل الأساسية المرتبطة

,

wireline core barrel

معلومات اساسية
مكان المنشأ: Germany
اسم العلامة التجارية: ROSCHEN
إصدار الشهادات: ISO, API
رقم الموديل: T6-H, T6-101, T6-116, T6-131, T6-146
شروط الدفع والشحن
تفاصيل التغليف: Polywooden packing
القدرة على العرض: 100 sets
منتوج وصف

T6 Series Double Tube Core Barrel For Exploration Core Drilling , T6-101 T6-116

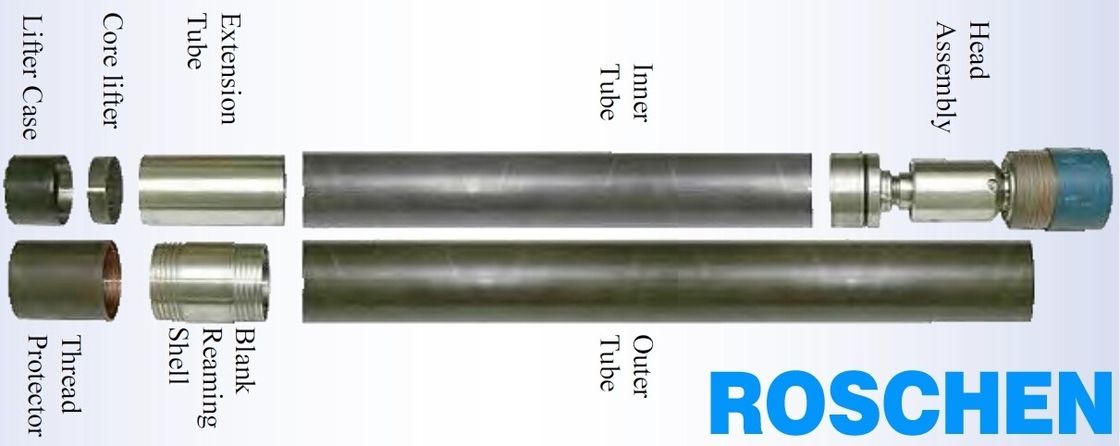

The T6 series is a core barrel of sturdy design suitable for coring in all formations. The barrel is used with core bits with a relatively thin kerf to maximize the rate of penetration. T6 barrels can be used with water, mud or air flush, but when using air flush, oversize bits and core barrel couplings are recommended (available on request). The barrel is available in four nominal millimeter sizes, 101, 116, 131 and 146, as well as the DCDMA hole size H.




Core bit not supplied with barrel. T6 barrels are designed to nest inside metric casing. T6-H barrel can also be used inside HW casing. Standard core lengths are 1.5 and 3.0 meters, other lengths are available on request.


Specifications:



Core Barrel Hole Diameter(mm) Core Diameter(mm) Head Connection
T6-H 99.2 79.0 NW rod
T6-101 101.3 79.0 NW rod
T6-116 116.3 93.0 NW rod
T6-131 131.3 108.0 NW rod
T6-146 146.3 123.0 NW rod






FAQ

Terms & Conditions of Ordering:

Quality warranty:
Our products are made of high quality steel and all spares parts are inspected strictly before shipping. We have quickly responses for your complaint and suggestion.

Package:
Using ply-wooden cases and pallet for package to protect the products and avoid the damage during transportation. Also we can customize package according to your special requests.

Production time:
Generally need 15-25 days

Transportation:
By air, By Express or By sea according to your requests.


1. Methods of Payment:
T/T (Telegraphic Transfer) or Western Union or L/C at sight

2. Handling time for an order
Based on order quantity, normally it takes 20 days for production.
in 3 working days after receiving the advance payment

3. Shipping way
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
Bulk order: we suggest by air or by sea.

4. Quality Control
We have our own experienced QC.
There will be strict inspection and testing for every order before shipping out.

5. After Services:
a. Our sales team will response for your question within 24 hours (Holidays Excluded)
b. Technical Support will be available in any time

6. Quality & Service:
A. There will be strict inspection and testing for every order before shipping out.
B. Our sales team and Technical Support will response for your question within 24 hours through skype: ROSCHEN.TOOL and WhatsApp/Wechat: +86-13764195009
C. Free replacement will provide once the failure confirmed caused or our product quality; Not satisfied with a refund.
