Surface Set Diamond Core Drill Bits , Backfilled Stratum Shale Diamond Drill Bit Set
1-5pcs
MOQ
كبير. img.alt
ميزات صالة عرض منتوج وصف طلب عرض أسعار
ميزات
معلومات اساسية
Place of Origin: Germany
اسم العلامة التجارية: ROSCHEN
إصدار الشهادات: ISO, CE
Model Number: NQ NQ3 HQ HQ3 PQ PQ3
تسليط الضوء:

Diamond Core Drilling Bits,Concrete Core Drill Bit

,

Concrete Core Drill Bit

شروط الدفع والشحن
Packaging Details: Carton box
Supply Ability: 500 pcs
مواصفات
منتوج وصف

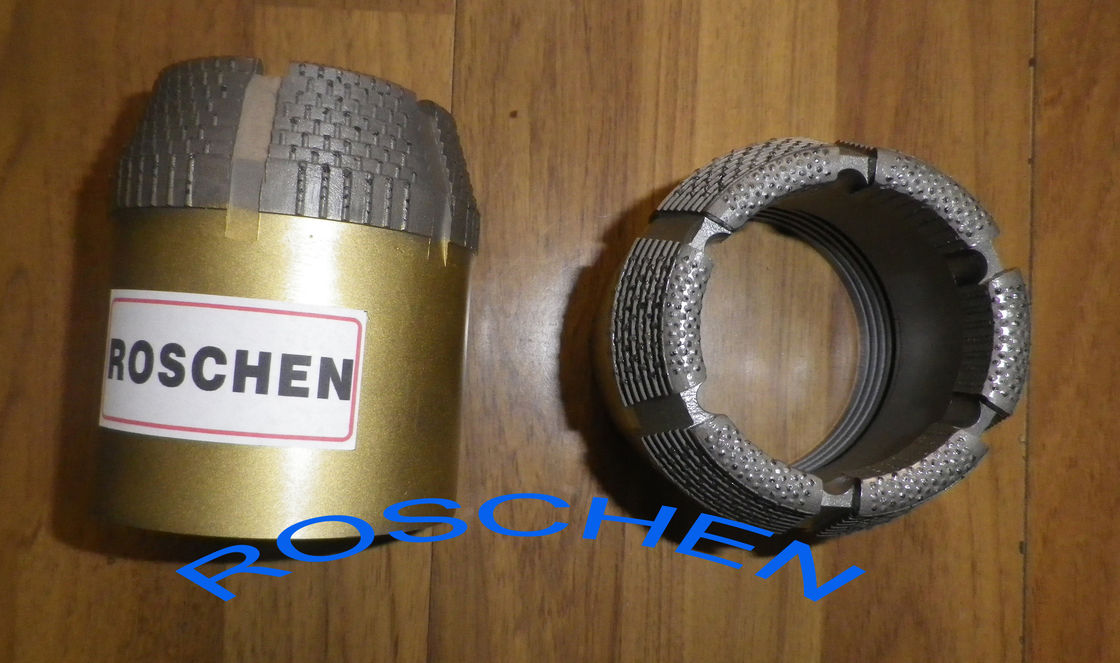

NQ NQ3 HQ HQ3 Surface Set Diamond Core Drill Bit for Drilling Broken and Backfilled Stratum Shale




Surface Set Diamond Bit

Roschen surface-set diamond bits are set with a singular layer of natural or synthetic diamond utilizing a hard matrix compound on the face of the bit. The diamond set design ensures sufficient overlap to prevent premature wear of the matrix.

Surface set diamond bits are primarily recommended for use in drilling relatively soft, abrasive, unconsolidated formations that are not effectively drilled by impregnated diamond bits. They are also recommended for use in drilling harder formations where the available rotational speeds and bit loads are insufficient to use impregnated diamond bits due to drilling equipment limitations.



Surface-Set Diamond Bits Surface-Set non-coring bits are drilling for broken formation rock which can't be cored. Crown is used to set with synthetic, natural or polycrystalline diamond. It's used for drilling in soft to medium hard formation rocks.


Roschen supply these specifications:

"Q" Wireline series: AQ, BQ, NQ, HQ, PQ/AQTK, BQTK, BQ3, NQ2, NQ3, NQTT, HQ3, HQTT, PQ3, PQTT
T2 series: T2 46, T2 56, T2 66, T2 76, T2 86, T2 101, T2 116, T2 131
T6 series: T6 76, T6 86, T6 101, T6 116, T6 131, T6 146, T6S 101, T6S 116
T series: T36, T46, T56, T66, T76, T86, T101, T116, T131
Z series: Z46, Z56, Z66, Z76, Z86, Z101, Z116, Z131, Z146
B series: B36, B46, B56, B66, B76, B86, B101, B116, B131, B146
WF series: HWF, PWF, SWF, UWF, ZWF
WT series: RWT, EWT, AWT, BWT, NWT, HWT, PWT
WM series: EWM, AWM, BWM, NWM, HWM
WG series: EWG, AWG, BWG, NWG, HWG
"QWL" series: QWL Series: AQWL, BQWL, NQWL, HQWL, PQWL , NQWL2, NQWL3, NQTT, HQWL3, HQTT, PQWL3, PQTT

Others: NMLC,HMLC,LTK48,LTK60,BGM,NGM,ADBG,TBW,TNW,ATW,BTW,NTW,NXD3,EX,AX,BX,NX,NXC,

EXT,AXT,EXU,AXU,NXU,T6H,4-9/16,NWD4,412F,SK6L146,K2-101,K2-116,TT46,TB56,TS116,CHD101




Please feel free to send us your inquiries & requirements by roschen@roschen.com ; roschen@roschen.net .
