CSUMX Diamond Casing Shoe For HW NW PW HWT PWT Diamond Drilling Tools
ميزات صالة عرض منتوج وصف طلب عرض أسعار
ميزات
مواصفات
Series: Wireline Diamond Core Bits
Model: Impregnated Diamond Core Bits
Drilling: Exploration Core Drilling
Drills: Wireline Core Drilling
Mining: Australia Mining
Exploration: Australia Exploration
Model No: Mining Exploration Core Drilling
Usage: Africa Mining
Applications: Copper Mining Drilling
تسليط الضوء:

Diamond Core Drilling Bits,Diamond Core Drill Bits For Rock

,

Diamond Core Drill Bits For Rock

معلومات اساسية
مكان المنشأ: China
اسم العلامة التجارية: ROSCHEN
إصدار الشهادات: ISO
رقم الموديل: HW NW PW HWT PWT
شروط الدفع والشحن
تفاصيل التغليف: Cartons
القدرة على العرض: 1000 pcs
منتوج وصف

CSUMX Diamond Casing Shoe For HW NW PW HWT PWT Diamond Drilling Tools

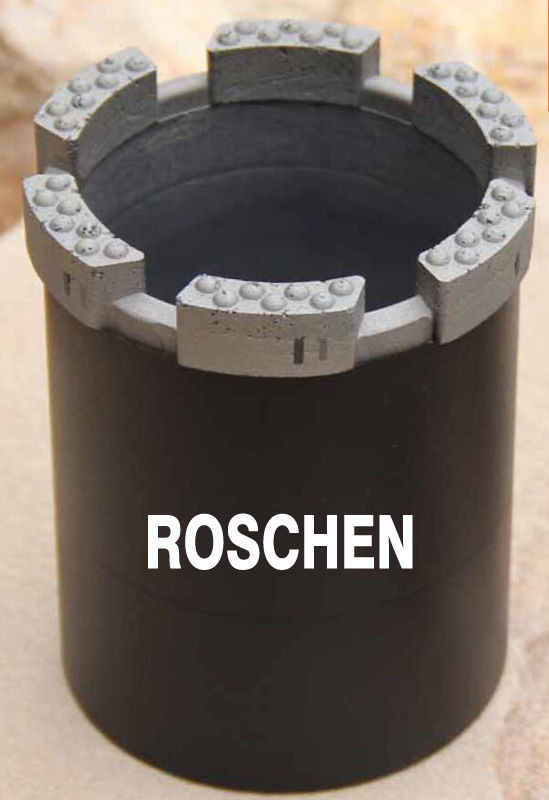

CSUMX Diamond Casing Shoe


The CSUMX casing shoe is designed for all exploration and geo-technical casing applications. The ability to drill faster with high penetration rates and outperform existing shoe technology in a wide range of ground formations makes the CSUMX ideal for customers seeking a cost-effective alternative to their current shoe selection.



Product Features:

1. UMX crown patented technology enables penetration through changing ground condition
2. Razorcut face design patented design is ready to cut right "out of the box"
3. Twin-Taper window dramatically improves flushing, forcing debris through




CSUMX DIAMOND bIT



CSUMX
The CSUMX casing shoe is designed for all exploration and geo-technical casing applications. The ability to drill faster with high penetration rates and outperform existing shoe technology in a wide range of ground formations makes the CSUMX ideal for customers seeking a cost-effective alternative to their current shoe selection.


UMX
Roschen’s extensive drilling experience and history of engineering are the drivers behind the incredibly innovative UMX impregnated casing shoe. By combining patented technologies with customer collaboration, Roschen’s engineers have designed the highest performing casing shoes available.


Ultramatrix
CSUMX impregnated casing shoes feature Roschen’s patented Ultramatrix. Ultramatrix technology enables the use of large synthetic diamonds with an innovative formula, increasing penetration through various ground formations while providing longer shoe life. This optimization couples the high penetration
capability with longer shoe life and allows the CSUMX to cut easily from one ground formation to another.



Leading Technology
The CSUMX also features the unique Razorcut design on the face of the bit. This speeds exposure of the diamonds and enables the shoe to cut even in the softest overburden.

The arrangement of the Twin-Taper waterways dramatically improves surface flushing, which keeps the shoe face clear and reinforces the inner-diameter of the shoe.





Specifications
Q Series AQ, BQ, NQ, NQ2,NQ3,HQ, HQ2,HQ3,PQ,PQ2,PQ3
T, TT, T2&TB Series T36, TT46, T2-46, TB56, TT56, T2-56, T2-66, T2-76, T2-76 Core line, T2-86, T2-86 Core line, T2-101,T2-101Core line
T6 Series T6-76, T6-86, T6-101, T6-116, T6-131, T6-146
B Series (ISO3552-1) B36, B46, B56, B66, B76, B86, B101, B116, B131, B146
WF Series: HWF, PWF, SWF, UWF, ZWF
WT Series: RWT, EWT, AWT, BWT, NWT, HWT (Single Tube/Double Tube)
WG Series: EWG, AWG, BWG, NWG, HWG (Single Tube/Double Tube)
WM Series: EWM, AWM, BWM, NWM
N Guage Core Bits WLN, WLN2, WLN3, NMLC, NWG NX, NWM, NWT, TNW
H Gauge Core Bits WLH, WLH-3.830, WLH-3.895, WLH3, WLHTT, HMLC, HWF-long, HWM,HWT










Further exploration drilling products information, please don't hesitate to contact us.
