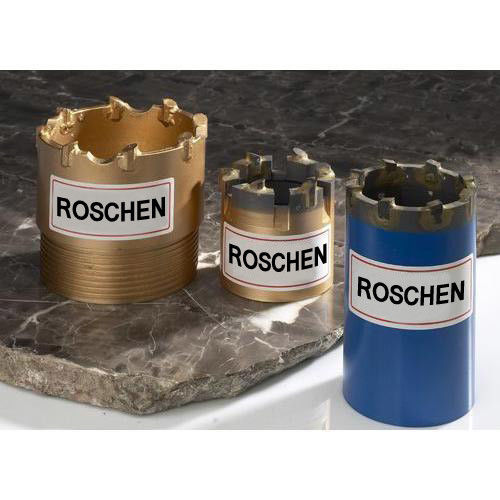

B116 T. C. Tungsten Carbide Metric Core Bit For Geotechnical Investigation Exploration Core Drilling

1-5 Pcs
MOQ
Negotiate
السعر
B116 T. C. Tungsten Carbide Metric Core Bit For Geotechnical Investigation Exploration Core Drilling
ميزات صالة عرض منتوج وصف طلب عرض أسعار
ميزات
مواصفات
Model: B116 Tungsten Carbide Core Bit
Certificate: ISO, CQC, SGS, Saso
Material: Tungsten Carbide
Shape: Round Tungsten Carbide Tip
Usage: Exploration Core drilling
Type: Core Drill Bits
Manufacture Art: Sinter
Use: Geotechnical Investigation
Standard: DCDMA, CDDA
Applications: Copper Mining Drilling
Model No: Mining Exploration Core Drilling
Exploration: Australia Exploration
Mining: Australia Mining
Drills: Wireline Core Drilling
Drilling: Exploration Core Drilling
Series: Wireline Diamond Core Bits
تسليط الضوء:

Diamond Core Drilling Bits,Diamond Core Drill Bits For Rock

,

Diamond Core Drill Bits For Rock

معلومات اساسية
مكان المنشأ: China,Germany
اسم العلامة التجارية: ROSCHEN
إصدار الشهادات: ISO
رقم الموديل: T6-76, T6-86, T6-101, T6-116, T6-131, T6-146
شروط الدفع والشحن
تفاصيل التغليف: Carton box, Each Bit Is Independently Packed in a Small Carton
القدرة على العرض: 10000 pcs
منتوج وصف

B116 T. C. (Tungsten Carbide) Metric Core Bit for Geotechnical Investigation Exploration Core Drilling



Product Description

Tungsten Carbide Core Bits are designed especially for soil investigation and geotechnical drilling, but also suitable in some applications for mineral exploration. As the tungsten Carbide is softer than diamond stones, the formations which these bits are able to handle are limited in the range of soft or some medium rocks. Like the overburden drilling, cleaning of drill holes, e.g. for the removal of steel fragments from a drill hole.

Our company is specialized in exporting many types of drilling rigs, the products including drilling rigs for mining exploration, water well drilling rigs, coal mine drilling rigs, borehole drilling rigs, geological drilling machine, construction drilling rigs, core drilling rig, etc. We also exported the truck mounted drilling rigs, wheel mounted drilling rigs, crawler drilling rigs and so on to meet all customers' requirements.


We are also manufactured and exported all kind of drilling accessories, such as core bits, non-coring bits, reaming shells, casing shoes & casing bits, core barrels, overshot, drill rods, casing tubes and other drilling tools.


All specifications are available. If you need any further information, please feel free to contact with us.


Dimensions of Core Bits:


A-Gauge Core Bits: AQ, AQ-RSG, AWG (AX), AWM, AWT, LTK48

B-Gauge Core Bits: BQ, BQ-RSG, BQ-2.400, BQ3, BWG (BX), BWM, BWT, LTK60, TBW

N-Gauge Core Bits: NQ, NQ-RSG, NQ-3.032, NQ2, NQ2-RSG, NQ3 / NQTT, NQ3-RSG, NQ3-3.032, NMLC, NWG(NX), NWM, NWT, TNW,

H-Gauge Core Bits: HQ, HQ-RSG, HQ-3.830, HQ-3.895, HQ3 / HQTT, HQ3-RSG, HQ3-3.895, HMLC, HWF-Long, HWF-Short, HWG(HX),HWT

P-Gauge Core Bits: PQ, PQ3, PWF-Long, PWF-Short

S-Gauge Core Bits: SWF-Long, SWF-Short

U-Gauge Core Bits: UWF-Long, UWF-Short

Z-Gauge Core Bits: ZWF-Long, ZWF-Short

T, TT, T2 &TB Series Metric Core Bits: T36, TT46, T2-46, TB56, TT56, T2-66, T2-76, T2-76 Coreline, T2-86, T2-86 Coreline, T2-101, T2-101 Coreline

T6 Series Metric Core Bits: T6-76, T6-86, T6-101, T6-116, T6-131, T6-146

T6S Series Metric Core Bits: T6S-76, T6S-86, T6S-101, T6S-116, T6S-131, T6S0146

B Series (IS03552-1) Metric Core Bits: B36, B46, B56, B66, B76, B86, B101, B116, B131, B146

Specifications:

A-Gauge Core Bits
Size Outside diameter Inside diameter
inch mm inch mm
AQ 1.880/1.870 47.75/47.50 1.607/1.057 27.10/26.85
AQ-RSG 1.895/1.885 48.13/47.88 1.067/1.057 27.10/26.85
AWG,AX 1.880/1.870 47.75/47.50 1.190/1.180 30.23/29.97
AWM 1.880/1.870 47.75/47.50 1.190/1.180 30.23/29.97
AWT 1.880/1.870 47.75/47.50 1.286/1.276 32.66/32.41
LTK48 1.880/1.870 47.75/47.50 1.394/1.384 35.40/35.15
B-Gauge Core Bits
BQ 2.350/2.340 59.69/59.44 1.438/1.428 36.52/36.27
BQ-RSG 2.365/2.355 60.77/59.82 1.438/1.428 36.52/36.27
BQ-2.400 2.045/2.395 61.09/60.83 1.438/1.428 36.52/36.27
BQ3 2.350/2.340 59.69/59.44 1.325/1.315 33.65/33.40
BWG,BX 2.350/2.340 59.69/59.44 1.660/1.650 42.16/41.91
BWM 2.350/2.340 59.69/59.44 1.660/1.650 42.16/41.91
BWT 2.350/2.340 59.69/59.44 1.755/1.745 44.58/44.32
LTK60 2.350/2.340 59.69/59.44 1.742/1.732 44.25/44.00
TBW 2.350/2.340 59.69/59.44 1.785/1.775 45.34/45.09
N-Gauge Core Bits
NQ 2.970/2.960 75.44/75.19 1.880/1.870 47.75/47.50
NQ-RSG 2.985/2.975 75.82/75.57 1.880/1.870 47.75/47.50
NQ-3.032 3.037/3.027 77.14/76.89 1.880/1.870 47.75/47.50
NQ2 2.970/2.960 75.44/75.19 2.000/1.990 50.80/50.55
NQ2-RSG 2.985/2.975 75.82/75.57 2.000/1.990 50.80/50.55
NQ3,NQTT 2.970/2.960 75.44/75.19 1.780/1.770 45.21/44.96
NQ3-RSG 2.985/2.975 75.82/75.57 1.780/1.770 45.21/44.96
NQ3-3.032 3.037/3.027 77.14/76.89 1.780/1.770 45.21/44.96
LMLC 2.970/2.960 75.44/75.19 2.052/2.042 52.12/51.87
NWG, NX 2.970/2.960 75.44/75.19 2.160/2.150 54.86/54.61
NWM 2.970/2.960 75.44/75.19 2.160/2.150 54.86/54.61
NWT 2.970/2.960 75.44/75.19 2.318/2.308 58.87/58.62
TNW 2.970/2.960 75.44/75.19 2.394/2.384 60.80/60.55
H-Gauge Core Bits
HQ 3.770/3.755 95.76/95.38 2.505/2.495 63.63/63.38
HQ-RSG 3.790/3.755 96.27/95.89 2.505/2.495 63.63/63.38
HQ-3.830 3.840/3.825 97.54/97.16 2.505/2.495 63.63/63.38
HQ-3.895 3.897/3.882 98.98/98.60 2.505/2.495 63.63/63.38
HQ3, HQTT 3.770/3.755 95.76/95.38 2.411/2.401 61.24/60.99
HQ3-RSG 3.790/3.755 96.27/95.89 2.411/2.401 61.24/60.99
HQ3-3.830 3.840/3.825 97.54/97.16 2.411/2.401 61.24/60.99
HQ3-3.895 3.897/3.882 98.98/98.60 2.411/2.401 61.24/60.99
HMLC 3.897/3.882 98.98/98.60 2.505/2.495 63.63/63.38
HWF-Long 3.912/3.897 99.36/98.98 3.005/2.995 76.33/76.08
HWF-Short 3.897/3.882 98.98/98.60 3.005/2.995 76.33/76.08
HWG, HX 3.897/3.882 98.98/98.60 3.005/2.995 76.33/76.08
HWM 3.897/3.882 98.98/98.60 3.005/2.995 76.33/76.08
HWT 3.897/3.882 98.98/98.60 3.192/3.182 81.08/8082
P-Gauge Core Bits
PQ 4.815/4.795 122.30/121.80 3.350/3.340 85.09/84.84
PQ3 4.815/4.795 122.30/121.80 3.275/3.265 83.18/82.93
PWF-Long 4.755/4.740 120.78/120.40 3.635/3.620 92.33/91.95
PWF-Short 4.735/4.715 120.27/119.76 3.635/3.620 92.33/91.95
S-Gauge Core Bits
SWF-Long 5.755/5.740 146.18/145.80 4.447/4.432 112.95/112.57
SWF-Short 5.735/5.715 145.67/145.16 4.447/4.432 112.95/112.57
U-Gauge Core Bits
UWF-Long 6.880/6.860 174.75/174.24 5.515/5.495 140.08/139.57
UWF-Short 6.855/6.825 174.12/173.36 5.515/5.495 140.08/139.57
Z-Gauge Core Bits
ZWF-Long 7.880/7.860 200.15/199.64 6.515/6.495 165.48/164.97
ZWF-Short 7.855/7.825 199.52/198.76 6.515/6.495 165.48/164.97
T, TT, T2 & TB Series Metric Core Bits
T36 1.422/1.412 36.12/35.87 0.859/0.849 21.82/21.57
TT46 1.818/1.808 46.18/45.92 1.394/1.384 35.40/35.15
T2-46 1.818/1.808 46.18/45.92 1.253/1.243 31.82/31.57
TB56 2.220 56.30 1.640 41.70
TT56 2.210/2.200 56.13/55.88 1.788/1.778 45.41/45.16
T2-56 2.210/2.200 56.13/55.88 1.647/1.637 41.83/41.58
T2-66 2.603/2.593 66.12/65.87 2.040/2.030 51.81/51.56
T2-76 2.997/2.987 76.12/75.87 2.434/2.424 61.82/61.57
T2-76 Coreline 2.997/2.987 76.12/75.87 2.288/2.278 58.12/57.87
T2-86 3.391/3.381 86.13/85.88 2.828/2.818 71.83/71.58
T2-86 Coreline 3.391/3.381 86.13/85.88 2.682/2.672 68.13/67.88
T2-101 3.981/3.971 101.12/100.87 3.300/3.290 83.82/83.57
T2-101 Coreline 3.971/3.971 101.12/100.87 3.155/3.145 80.13/79.88
T6 Series Metric Core Bits
T6-76 2.997/2.987 76.12/75.87 2.249/2.239 57.12/56.87
T6-86 3.391/3.381 86.13/85.88 2.643/2.633 67.13/66.88
T6-101 3.981/3.971 101.12/100.87 3.115/3.105 79.12/78.87
T6-116 4.575/4.560 116.20/115.82 3.667/3.657 93.14/92.89
T6-131 5.165/5.150 131.19/130.81 4.257/4.247 108.13/107.88
T6-146 5.755/5.740 146.18/145.8 4.847/4.837 123.11/122.86
T6S Series Metric Core Bits
T6S-76 3.009/2.999 76.43/76.18 1.883/1.873 47.83/47.58
T6S-86 3.403/3.393 86.43/86.18 2.277/2.267 57.83/57.58
T6S-101 3.993/3.983 101.43/101.18 2.828/2.818 71.83/71.58
T6S-116 4.586/4.571 116.48/116.10 3.379/3.369 85.83/85.58
T6S-131 5.177/5.162 131.48/131.10 3.970/3.960 100.83/100.58
T6S-146 5.767/5.752 146.48/146.10 4.560/4.550 115.83/115.58
B Series (ISO3552-1) Metric Core Bits
B36 1.422/1.412 36.12/35.87 0.859/0.849 21.82/21.57
B46 1.818/1.808 46.18/45.92 1.253/1.243 31.82/31.57
B56 2.210/2.200 56.13/55.88 1.647/1.637 41.83/41.58
B66 2.603/2.593 66.12/65.87 2.040/2.030 51.81/51.56
B76 2.997/2.987 76.12/75.87 2.434/2.424 61.82/61.57
B86 3.391/3.381 86.13/85.88 2.828/2.818 71.83/71.58
B101 3.981/3.971 101.12/100.87 3.418/3.408 86.82/86.57
B116 4.575/4.560 116.20/115.82 4.009/3.999 101.83/101.58
B131 5.165/5.150 131.19/130.81 4.599/4.589 116.82/116.57
B146 5.755/5.740 146.18/145.80 5.190/5.180 131.82/131.57





FAQ

Q: Are you a manufacturer or trading company?
A: We are a specialized manufacturer.

Q: What are your main products, and used for?
A: Our products include core bit, PDC bit, reaming shell, core barrel, casing, drill rod, SPT equipment, Shelby sampler, drill rig and other drilling parts.
They are used for mineral exploration, geological drilling, geotechnical engineering and soil sampling.

Q: How about the delivery terms?
1. Payment: T/T, L/C, Western Union, Paypal, 30% deposit in advance and rest before delivery.
2. Min. order quantity: 1 piece.
3. Transportation: By DHL/TNT/Fedex express, air, sea, train.

Q: How about discount?
A: Price is based on products and order quantity.

Q: Do you accept sample order?
A: Yes sure, please contact us for details.

Q: How about your after-sales service?
A: As a manufacturer, we offer promt technology support for all problems and questions. Besides, we accept goods return or replace for quality problem.

Q: How does your company control the quality?
A: Quality first. In order to guarantee high quality for our products, Roschen always makes a serious inspection for all products and raw materials in strict procedure. We have obtained certificate of ISO9001:2000 in 2004.
