Integrated Hydraulic DTH Drilling Rig Machine for Copper Mine Rock Drilling

1 set
MOQ
Negotiate
السعر
Integrated Hydraulic DTH Drilling Rig Machine for Copper Mine Rock Drilling
ميزات صالة عرض منتوج وصف طلب عرض أسعار
ميزات
مواصفات
Model: Integrated Hydraulic Rig
Machine: drill rig, Atlas Copco Drill Rig
Rocks: Copper Mine Rock Drilling
Formations: Mineral exploration
Use: Top Hammer Drilling
Usage: Blast hole drilling, bench drilling
Tools: DTH Hammer
Name: Blast Hole Drilling Rig
Drilling Tools: R32 Thread Button Bits
تسليط الضوء:

حراريّ أرضيّ يحفر جهاز حفر,ثقب حفر يحفر آلة

,

borehole drilling machine

معلومات اساسية
مكان المنشأ: Germany, China
اسم العلامة التجارية: ROSCHEN
إصدار الشهادات: ISO
رقم الموديل: RS-D-150, RS-D-180
شروط الدفع والشحن
تفاصيل التغليف: Bundles
القدرة على العرض: 1000 sets
منتوج وصف

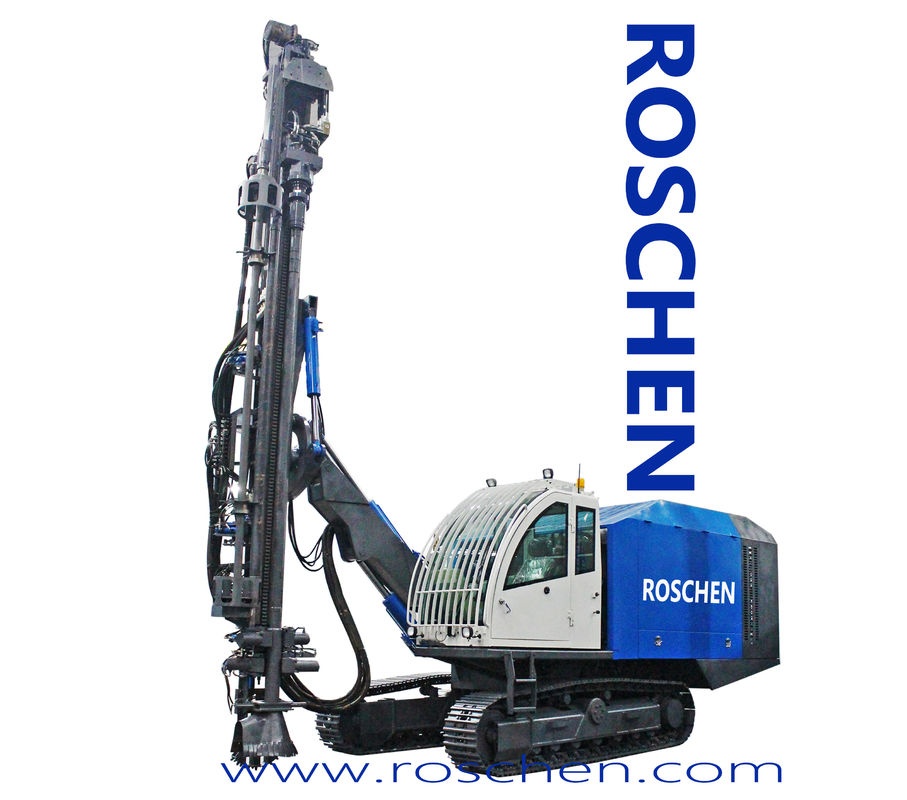

Integrated Hydraulic DTH Drilling Rig


Integrated Hydraulic DTH Drilling Rig for Copper Mine Rock Drilling


Integrated Hydraulic DTH Drilling Rig for Minerals Exploration, Tunneling Drilling






Integrated Hydraulic DTH Drilling Rig




Integrated Hydraulic DTH Drilling Rig for Minerals Exploration, Tunneling Drilling

RS D Series integrated hydraulic DTH drilling rig has a wide range of applications in constructions of metallurgy, mine, building material, railway, hydro-electricity, national defense, and earth moving engineering. The hydraulic power drives the crawler travel, rod rotation and push boom lifting erection. The compressed air drives impact drilling and hole flushing, the air pressure ranges from 1.05 to 2.5 Mpa. Equipped with RS high air pressure DTH hammer, the rig can drill the vertical or oblique holes which ranges 90 - 254mm diameter and maximum 30m depth parts worldwide procurement, computer optimum design, and power & load adaptive system, actualize the power pump load adaption and ensure the low energy consumption, high performance and high reliability of machine.




Advantages:



1. Power head

Auto disassemble mechanism for impactor and drilling stem, saves labor cost adequately.

Auto block prevention mechanism can lift the drill stem automatically when the stem got stuck.

Hydraulic systems, pneumatic systems are both adopt the separated power driven, energy saving efficiency is obvious.



2. Floating chassis

High reliability of driving mechanism, swift moving, fast lifting, significantly improve efficiency of production.

Adopt floating moving chassis, enable the rig to work in the rugged workplace.



3. Multifunctional hydraulic boom

Drill frame angle adjustable, meet the requirement of multi-direction drilling holes.

Boom supports wide range of working area, drilling rig can complete multiple holes operation as a position, significantly improves work efficiency.

Drill arm outstretched, factors of drilling stem vibration and dust discharged from the operating environment for the machine stability and the impact of significantly lower than conventional rigs, increase machine life and drilling accuracy.



4. Safe and comfortable operation

High practical cab, elegant appearance, comfortable internal protection.



Equipped with air conditioning, adjustable elastic damping seats, anti-smashing, anti-dumping protection facilities.

Real time machine performance and operational parameters monitored.



5. Compact structure, reasonable layout

Drilling systems, air supply systems, power systems are combined into the trinity, compact and flexible.

Modular design, easy maintenance.





6. Reliable quality

Strong fuel efficient power system

Critical hydraulic components are purchased internationally and preferentially the imported parts are preferential.

World class drilling stems and drilling systems.

Choosing high strength steel for the special chassis.




Technical Parameters:

Technical Parameter Model
RS-D-150 RS-D-180
Hole Diameter 90-152mm 105-180mm
Max.Drilling depth 28m 28m
Adaptive rock Protodyakonov scale of hardness F8 ~ F18
Rotation Torque 3000 Nm 4000 Nm
Rotary Speed 100 rpm 0~100 rpm
Feed Capacity 35 KN 40 KN
Feed Stroke 4380 mm 4300 mm
Lifting Speed 0.8m/s 0.8m/s
Drill Rod Length 4m 4m
Drill Rod Diameter 89mm 102mm
Hammer Model ROS 45 / ROS 55 ROS 55A / ROS 65A
Travel Speed First Gear: 2.5Km/h; Second Gear: 3Km/h First Gear: 1.7Km/h; Second Gear: 3.0Km/h
Grade Ability 25o 25o
Rising height from ground 430mm 430mm
Wind Pressure 1.7Mpa 2.4Mpa
Air Consumption ≥17m3/min ≥24m3/min
Engine power 287kw 332kw
Dimension Length x Width x Height
Dimension on transportation 11000x2500x3300mm 11500x2750x3380mm
Dimension on working 8000x2500x8410mm 8000x2750x8000mm
Gross Weight (ton) 15.5 T 23 T
