Full Hydraulic Multifunctional Crawler Water Drilling Machine With Down Hole Hommer Top Hammer Drilling

Full Hydraulic Multifunctional Crawler Water Drilling Machine With Down Hole Hommer Top Hammer Drilling
ميزات صالة عرض منتوج وصف طلب عرض أسعار
ميزات
مواصفات
Model: Crawler Multifunctional Drilling Rig
Model No.: Full Hydraulic Multifunctional Crawler Drilling Rig
Hammer: Down The Hole Hammer, DTH Hammer
Drilling: Top Hammer Drilling
Tools: Top Hammer Drilling Tools
Name: Bench Drilling
Bits Type: R32 Thread button bits, GT60 Button bits
Minerals: Mining Rock Drilling
تسليط الضوء:

حراريّ أرضيّ يحفر جهاز حفر,ثقب حفر يحفر آلة

,

borehole drilling machine

معلومات اساسية
مكان المنشأ: Germany, China
اسم العلامة التجارية: ROSCHEN
إصدار الشهادات: ISO
رقم الموديل: RS-CM-150, RS-CM-315
شروط الدفع والشحن
منتوج وصف

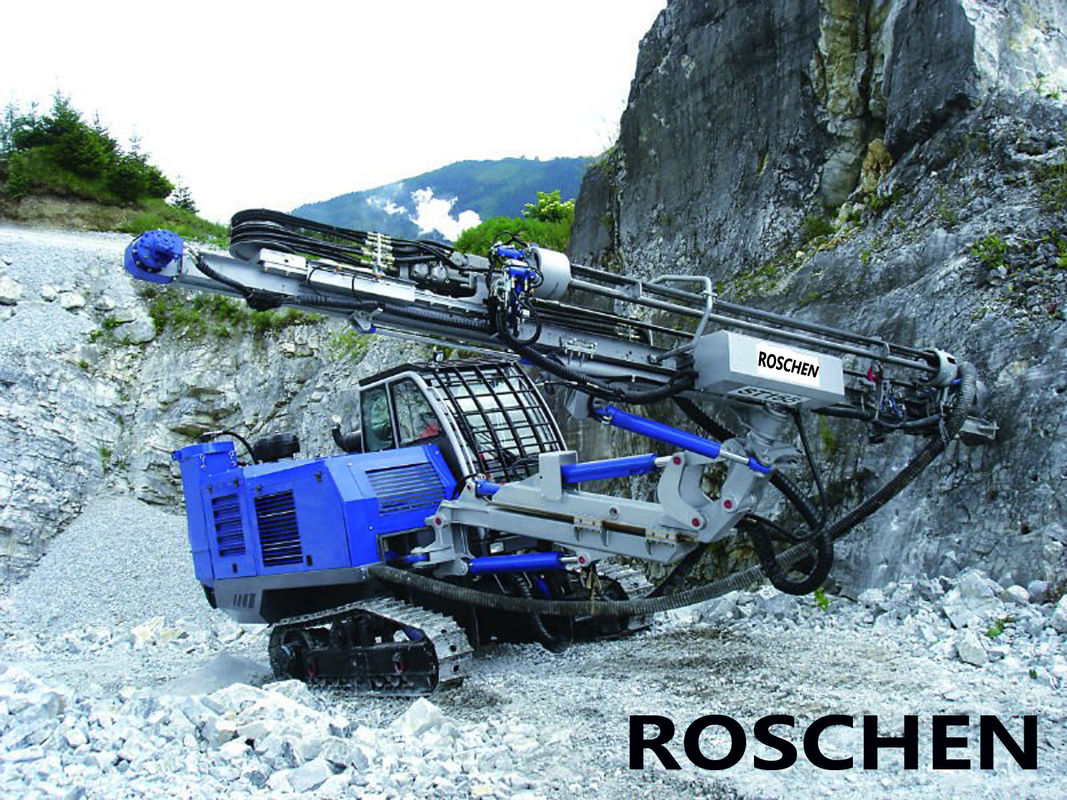

Full Hydraulic Multifunctional Crawler Drilling Rig with Down Hole Hommer Top Hammer Drilling



The RSCM full hydraulic crawler multifunctional drilling rigs are configured with rotation-percussion rotary head or large torque rotation type rotary head as alternative,and equipped with down-the-hole hammer, which is designed for various hole forming operation. It is suitable for different soil condition, for example gravel layer, hard rock, aquifer, clay, sand flow etc. This rig is mainly used for rotation percussion drilling and normal rotation drilling in the project of bolt supporting, slope supporting, grouting stabilization, precipitation hole and underground micro piles, etc.

RSCM Series Crawler Multifunctional Drilling Rig is designed and developed for lowest drilling cost, which is a hydraulic submersible drilling rig that can achieve operational cost minimization but highest performance. The rig is widely used in open-pit mines for the middle and large size hole drilling. The rig is equipped with heating and air conditioning in the cab, dry dust removal system and hydraulic automatic unloading drill function. With advanced performance, high efficiency, low consumption, high reliability, operation and easy maintenance. The rig is the leading open hole drilling equipment.


Advantages:

No Features of Full Hydraulic Multifunctional Crawler Drilling Rig
1 Reliable sliding rack mechanism adjusts the connection between boom and working face.
2 Totally new structural mechanical arm structure, strong and long life. Many joint frame and hydraulic cylinder, enlarge the drilling direction and working scope.
3 Auto block prevention mechanism can lift the drill stem automatically when the stem got stuck.
4 The cab of rig, which is equipped with heating and air conditioning, it is designed under the rule of ergonomic style and can provide good view for operators. Thus, the operation environment to the workers is greatly improved.
5 High efficient dust collection device helps to maintain clean working environment.
6 Auto dis-assembly mechanism for impacter and drilling stem. Clamped two hydraulic cylinders to assure efficient guide drilling during opening the hole and penetration, and automatic, reliable dis-assembly, thus it lightens the intensity of the labors and increase the working efficiency.
7 The use of high reliable crawler, imported travel motor and walking two speed control set maximize the efficiency and adaptability of the rig face.
8 All rig's manipulation, position adjustment, drilling position selecting are all centrally controlled by the pilot operating joystick, all the lights, warning lights are mounted on the same panel. Rig operator can recognize condition at a glance.



Technical Parameters:

Parameter Model
RS-CM-150 RS-CM-315
Hole Diameter 105-152mm 203-311mm
Max.drilling depth 24m 24m
Adaptive Rock Protodyakonov scale of hardness F8 - F18
Rotation Torque 3000Nm 6000Nm
Rotary Speed 0-60rpm 0-40rpm
Feeding Capacity 30KN 75KN
Feed Stroke 4380mm 4380mm
Lifting Speed 0.5m/s 0.3m/s
Hammer Model ROS 55A ROS 85A / ROS110
Drill Rod Diameter 89mm 146mm
Drill Rod Length 4Mx6 4Mx6
Travel Speed First Gear: 2.5Km/h Second Gear: 3Km/h First Gear: 2.5Km/h Second Gear: 3Km/h
Grade Ability 25o 25o
Rising Height from ground 405mm 450mm
Wind Pressure 1.38 ~ 3.2Mpa 1.38 ~ 3.2Mpa
Air Consumption 25M3/min 30M3/min
Engine Power 75Kw 93Kw
Dimension Lenght x Width x Height
Dimension on transportation 10500x2850x3250mm 9000x2900x3400mm
Dimension on working 7555x2850x8620mm 7700x2900x7800mm
Gross Weight 12.5 tons 18 tons
