Crawler Drilling Rig with full hydraulic power head For Anchoring Hole drilling

1 sets
MOQ
Negotiate
السعر
Crawler Drilling Rig with full hydraulic power head For Anchoring Hole drilling
ميزات صالة عرض منتوج وصف طلب عرض أسعار
ميزات
مواصفات
Type: Crawler Drill Rig
Model: Full Hydraulic Drilling Rig
Drills: Anchoring Hole Drilling
Drilling: Geological Drilling
Use: Foundation Drilling
Usage: Grouting Hole Drilling
Pumps: Mud Pumps
Pumping: High Pressure Mud Pump
Name: crawler drilling machine
تسليط الضوء:

حراريّ أرضيّ يحفر جهاز حفر,ثقب حفر يحفر آلة

,

borehole drilling machine

معلومات اساسية
Place of Origin: USA, CHINA
اسم العلامة التجارية: ROSCHEN
إصدار الشهادات: ISO
Model Number: RS-130
شروط الدفع والشحن
Packaging Details: Bundles
Supply Ability: 1000 sets
منتوج وصف

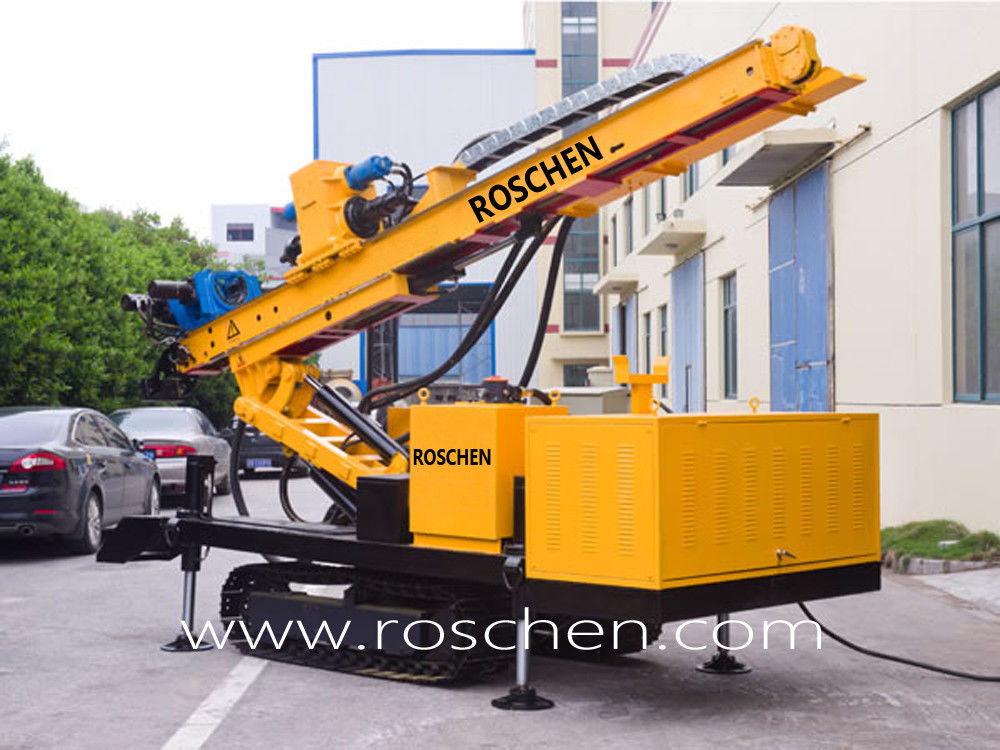

RS-130 Crawler Drilling Rig





RS-130 Crawler Drilling Rig with full hydraulic power head For Anchoring Hole drilling




Crawler Drilling Rig



RS-130 Crawler Drilling Rig with full hydraulic power head For Anchoring Hole drilling




Description of Crawler Drilling Rig

The RS-130 crawler drilling rig is a kind of full hydraulic power head (top drive) multifunctional drilling equipment. It is extensively used in the construction of big tonnage prestress anchoring hole for hydropower station, railway, and highway. Apart from that, this product is applicable for geologic calamity management, such as landslide and rock collapse prevention. In addition, our crawler drilling machine is an ideal tool for constructing deep foundation pit support, foundation reinforcement hole, ground source heat pump hole, tunnel pipe roof support, grouting hole for reinforcement, pile hole and hydrological water well.




Features:



1. The crawler drilling rig is well received because of the powerful drilling capacity, which enables wide application, fast drilling speed, high working efficiency, as well as the outstanding accident handling capacity.

2. The output shaft for the power head is engineered with extension mechanism, offering effective protection to the drilling tool.

3. Adopting hydraulic shift method, the gearshift mechanism of the top drive power head has the strongpoint of rapid, convenient, and reliable gearshift.

4. There is hydraulic clamp and breakout device installed on the orifice of the crawler drilling rig, helping reduce time for non productive operation and intensity for operation.

5. Since the multi-function driller is mounted on the crawler, this machine can be moved easily.

6. The main elements of the hydraulic system are imported from well known supplier home and abroad for reliable overall performance and long lifespan of the products.

7. This construction machinery supports multiple drilling methods, such as rotary drilling with alloy drill tool, auger drilling, down the hole hammer drill by air, etc.

8. The crawler drilling rig is designed with drill arm, making it possible for mast regulation in different angles and heights. The special design makes the product particularly suitable for anchor cable construction of deep foundation pit.

9. This range of product can be installed with jet grouting device for the construction of anchor cable.





Technical Parameters:

Hole Depth 100-200m
Hole Diameter 130-250mm
Power Head Output Rotation Speed(forward, reverse) 21/42, 79/158rpm
Power Head Max.Output Torque 7500Nm
Power Head Feeding Stroke 3500mm
Max.Power Head Lifting Capability 65kN
Max.Power Head Thrust Force 45kN
Mast Sliding Stroke 3500mm
Drill Rod Specifications Ø89x1.5m, Ø168x1.5m
Gradeability 20o
Overall Dimension(transport state) 6500x2000x2300mm
Diesel Engine Power 55kw/71kw
Weight (kg) 6500kg
