Hydraulic Splitter Darda Cylinder Splitting For Rock Split , Site , Bridge , Mine Broken

Hydraulic Splitter Darda Cylinder Splitting For Rock Split , Site , Bridge , Mine Broken
Hydraulic Splitter Darda Cylinder Splitting For Rock Split , Site , Bridge , Mine Broken Hydraulic Splitter Darda Cylinder Splitting For Rock Split , Site , Bridge , Mine Broken Hydraulic Splitter Darda Cylinder Splitting For Rock Split , Site , Bridge , Mine Broken Hydraulic Splitter Darda Cylinder Splitting For Rock Split , Site , Bridge , Mine Broken

صورة كبيرة :  Hydraulic Splitter Darda Cylinder Splitting For Rock Split , Site , Bridge , Mine Broken

تفاصيل المنتج:

Place of Origin: CHINA
اسم العلامة التجارية: ROSCHEN
إصدار الشهادات: ISO
Model Number: RS-150-450

شروط الدفع والشحن:

Minimum Order Quantity: 1 set
الأسعار: Negotiate
Packaging Details: Poly wooden box
Supply Ability: 10000 sets
مفصلة وصف المنتج
Model: hydraulic splitter Name: Hydraulic Rock Splitter
Operation: hand-hold splitting Tools: Demolition tools
Functions: Split Rock or concrete Series: hydraulic breaker
Use: Non-explosive and blast forbidden Splitting Hole Diameter: 42-46mm
Splitting parts Diameter: 40-45mm Splitting Effective Length: 150-450mm
Minimum Drilling hole depth: 400-700mm Actual Splitting force: 600 tons
Rated working pressure: 55-65 Mpa Splitting distance: 13 - 18 mm
تسليط الضوء:

صخر يحفر تجهيز,ثقب حفر يحفر آلة

,

borehole drilling machine

Darda cylinder


Darda cylinder


Hydraulic splitter


Hydraulic rock splitter


Hydraulic splitter Darda cylinder Splitting for Rock Split, Site, bridge, mine broken



hydraulic splitter


A concrete- or rock-cracking mechanism incorporating a wedge inserted into a predrilled hole and then expanded by hydraulic power to cause the cracking.



Model Splitting hole Dia.(mm) (Splitting Parts Dia.(mm) Splitting Effective Length (mm) Mininum Drilling hole Depth (mm) Actual Spltting Force (Ton) Rated Working Pressure (Mpa) Splitting Distance (mm)
RS150 42-44 40.5 150 400 600 55.63 13-18
RS250 42-44 40.5 250 500 600 55.63 13-18
RS350 46-48 44.5 350 600 600 55.63 13-18
RS350 46-48 44.5 450 700 600 55.63 13-18


Hydraulic Splitter Darda Cylinder Splitting For Rock Split , Site , Bridge , Mine Broken 0


Phase 1, First, a hole of a precise diameter and depth is drilled into the material. The wedge set (one wedge and two counter wedges) is inserted into the drill-hole.


Phase 2, The wedge is driven forward under hydraulic pressure, forcing the counter wedges apart with a force of up to 450 tons. The material splits within seconds.


Phase 3, With enlarging counter wedges the split can be expanded to its maximum width. Reinforcing rods break or can be cut up with a suitable power tool.



Controlled Demolition for Infrastructure Work



Many contractors find they can reduce costs, save time and make demolition work profitable using the hydraulic splitting method. Hydraulic splitting means controlled demolition. As the direction of breaks can be determined, concrete can be cut in sections as large as your equipment can handle. Hydraulic splitting eliminates both shocks and vibrations associated with large impact tools. Engineered for heavy duty work, hydraulic splitters will out perform even large mounted impact machines. It can break large pieces of concrete or rock many times faster than paving breakers.


Years of research and the use of hydraulic splitting on hundreds of job sites has proved this new method to be one of the most practical tools for demolition of concrete and rock. With a hydraulic splitter, the operator now has a very powerful tool at his command. With little effort, he can control the demolition as the job requires. The applications for the splitter are many, such as bridge decks, abutments, retaining walls, concrete walls, floor slabs, foundations, wall openings, reinforced concrete, rock and brick walls, locks, dams, culverts, road barriers and underwater demolition of concrete and rock.




How Splitting Works
Hydraulic Splitter Darda Cylinder Splitting For Rock Split , Site , Bridge , Mine Broken 1

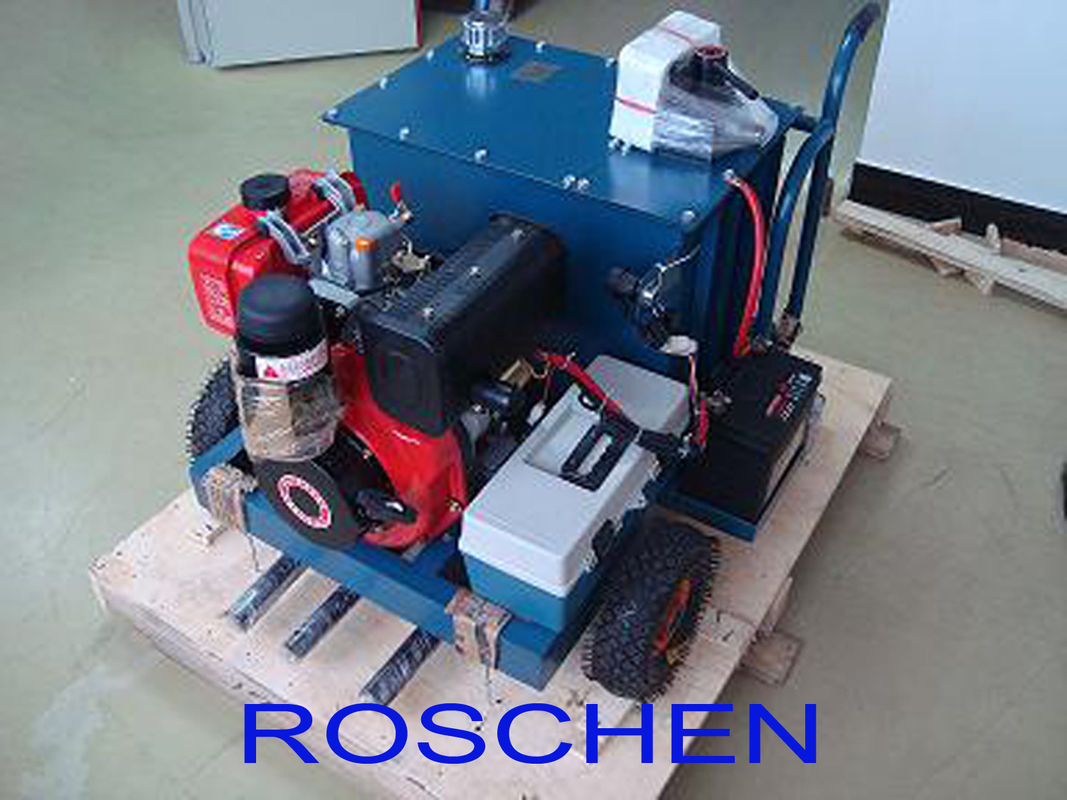

The hydraulic splitter is powered by a 10,000 P.S.I. pump. The cylinder contains a control valve and a piston that moves the plug between the two feathers forcing them against the wall of the hole. When the tension increases beyond the tensile strength of the material, a split will occur. The entire operation of the cylinder is controlled by a single lever on top of the tool. The plug can be advanced and retracted with this lever. An automatic built-in valve reduces pressure after break.


*Two or more hydraulic splitters can be operated at one time increasing the breaking. Example,two cylinders produce 1,400,000 lbs. of breaking force. Up to four splitters can be operated with one pump.


Hydraulic Splitter Darda Cylinder Splitting For Rock Split , Site , Bridge , Mine Broken 2

A hydraulic splitter was used to remove ends of overpass supports to form a keyway. The concrete was separated wide enough to cut reinforcing rods using enlarging feathers.



Hydraulic Splitter Darda Cylinder Splitting For Rock Split , Site , Bridge , Mine Broken 3

A workman carries splitter used to cut 14 ft. tunnel through base of dam for new penstock.


Hydraulic Splitter Darda Cylinder Splitting For Rock Split , Site , Bridge , Mine Broken 4



Trench rock and boulders below grade can be broken with one or more hydraulic splitters. Hydraulic splitting eliminates dangers associated with blasting. These hydraulic splitters will also operate underwater without any modifications.



Hydraulic Splitter Darda Cylinder Splitting For Rock Split , Site , Bridge , Mine Broken 5
Hydraulic Splitter Darda Cylinder Splitting For Rock Split , Site , Bridge , Mine Broken 6
