Wireline Impregnated Diamond Core Bits BQ3 9mm 12mm 16mm For Mining Exploration core drilling

1 pcs
MOQ
$60
السعر
Wireline Impregnated Diamond Core Bits BQ3 9mm 12mm 16mm For Mining Exploration core drilling
ميزات صالة عرض منتوج وصف طلب عرض أسعار
ميزات
مواصفات
Series: Wireline Diamond Core Bits
Model: Impregnated Diamond Core Bits
Drilling: Exploration Core Drilling
Drills: Wireline Core Drilling
Mining: Australia Mining
Exploration: Australia Exploration
Model No: Mining Exploration Core Drilling
Usage: Africa Mining
Applications: Copper Mining Drilling
تسليط الضوء:

Diamond Core Drilling Bits,Concrete Core Drill Bit

,

Concrete Core Drill Bit

معلومات اساسية
مكان المنشأ: Germany, US
اسم العلامة التجارية: ROSCHEN
إصدار الشهادات: ISO9001
رقم الموديل: T2 46, T2 56, T2 66, T2 76, T2 86, T2 101, AQ, BQ, NQ, HQ, PQ/AQTK, BQTK, BQ3, NQ2, NQ3, NQTT, HQ3, HQTT, PQ3, PQTT
شروط الدفع والشحن
تفاصيل التغليف: wooden, carton box
القدرة على العرض: 2000pcs
منتوج وصف

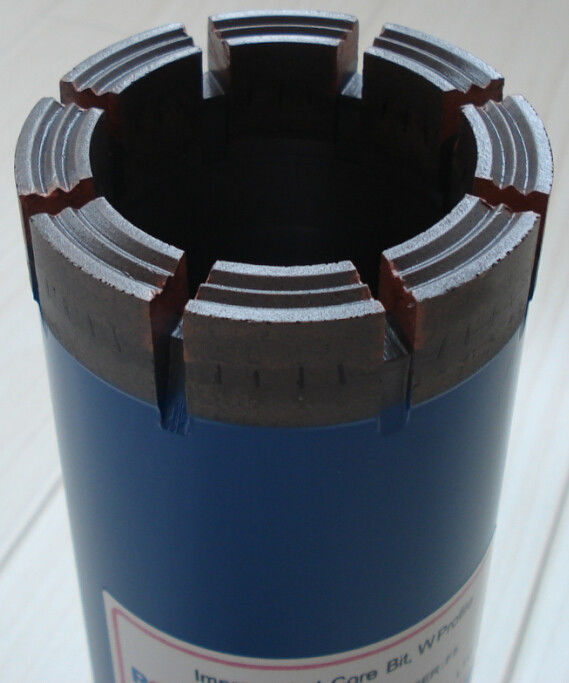

Wireline Impregnated Diamond Core Bits BQ3 9mm 12mm 16mm For Mining Exploration


Wireline Impregnated Diamond Core Bits BQ3 9mm 12mm 16mm For Mining Exploration core drilling

Wireline impregnated diamond core bits



Detailed Product Description

Features: High Penetration Rate, High Speed,High Performance Product Name: Core Drill Bits
Crown Height: 9mm, 12mm, And 16mm Type: Wireline Diamond BQ3 Core Bit
Certification: ISO9001 Use: Mineral Exploration Industry



Wireline Impregnated Diamond Core Bits BQ3 9mm 12mm 16mm For Mining Exploration





Specifications:



Wireline diamond BQ3 core bit
1. boart long year standard
2. Delivery fast
3. good feedback
4. certified by ISO9001





Description:


The impregnated diamond bits are the most commonly useful bits in the mineral exploration industry, as they have the widest range of application. The carefully selected grades of high quality synthetic diamond are distributed in the depth of impregnated bit's matrix series. The matrix layer of the ZM contains a uniform distribution of these crystals that are embedded in a powdered metal bond.

The matrix of our impregnated bits is designed to expose new diamonds to the bits' cutting face as wear occurs. Fast penetration rate is maintained as a result of this action.

Our impregnated bits are manufactured to give optimum penetration rates and bit life, which is required to keep the cost of diamond drilling to a minimum.

The optimum diamond size, concentration and matrix type are dependent on the hardness and abrasiveness of the formation to be drilled.



Notice  :



To select the right bit for the job, assess the speed and power of your drill for the size and depths of the holes to be drilled and assess ground conditions such as rock type/formation and down-hole conditions.



Size:
ROSCHEN  bits are available in all standard drilling sizes . Also, non-standard sized bits can be produced according to requirements from clients.

Crown Height:
ROSCHEN offers crown impreg depths of  9mm, 12mm, and 16mm .The taller crown heights provide improved bit stability and reduced vibrations, enhancing bit life and performance.

Waterways:
Various waterways are available for diamond impregnated bits. Differing waterways allow for better flushing in various ground conditions and drilling systems.

Matrix Bond:
ROSCHEN impregnated bits matrices can be selected by our engineer according to ground conditions at client's work site.



Threads:

standard Q threads as well as thread types required by clients are available.



Advantages:



1. Fast cutting and drilling speed

2. Long life, stable performance

3. Low power consumption



Size



Outside Diameter

Inside Diameter

inch

mm

inch

mm

AQ

  1.880/1.870

 47.75/47.50

  1.607/1.057

  27.10/26.85

BQ

2.350/2.340

59.69/59.44

1.438/1.428

36.52/36.27

NQ

2.970/2.960

75.44/75.19

1.880/1.870

47.75/47.50

HQ

3.770/3.755

95.76/95.38

2.505/2.495

63.63/63.38

PQ

4.815/4.795

122.30/121.80

3.350/3.340

85.09/84.84



Specialisted in producing varies kinds of diamond core bits in different international standard size for soft, medieum to hard rock formations.



Which, including impregnated diamond core bit, surface-set diamond bit, reaming shells, impregnated diamond casing bit, casing shoe bit, TC core bit, TC casing bit, diamond reaming shell, corelifter, corelifter case, diamond sub-adapters,  hoist plugs, tap, etc.

With ISO, API certificate & quality control.
