BQ HQ NQ PQ Core Drilling Tools Reaming Shells Surface Set Impregnated reamer

1 pcs
MOQ
$30
السعر
BQ HQ NQ PQ Core Drilling Tools Reaming Shells Surface Set Impregnated reamer
ميزات صالة عرض منتوج وصف طلب عرض أسعار
ميزات
مواصفات
تسليط الضوء:

Concrete Core Drill Bit,Diamond Core Drill Bits For Rock

,

Diamond Core Drill Bits For Rock

معلومات اساسية
مكان المنشأ: Germany
اسم العلامة التجارية: ROSCHEN
إصدار الشهادات: ISO9001
رقم الموديل: AQ,BQ,NQ,HQ,RQ,PQ,T2,T6,146,TT48, LTK48, LTK60
شروط الدفع والشحن
تفاصيل التغليف: wwoden box
القدرة على العرض: 600 pcs
منتوج وصف

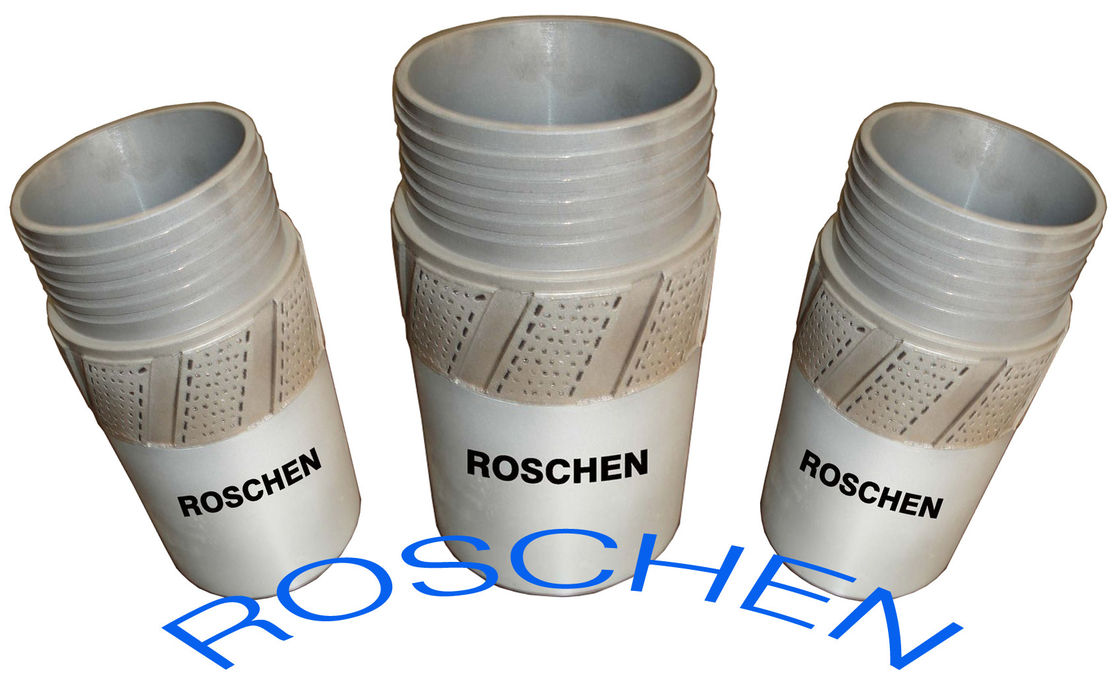

BQ HQ NQ PQ Core Drilling Tools Reaming Shells Surface Set Impregnated reamer



BQ HQ NQ PQ Core Drilling Tools / Diamond Reaming Shells , Surface Set and Impregnated

BQ HQ NQ PQ Core Drilling Tools / Diamond Reaming Shells , Surface Set and Impregnated reamer for exploration core drilling



Detailed Product Description

Features: Natural Or Synthetic Diamond Product Name: Reaming Shells
Machine Type: Drilling Tools Type: Core Drill Bit,Construction Tool Parts
Application: Geological Exploration, Mining Exploration, Hydrogeological Exploration And Oil, Gas, Exploration Model Number: BQ,NQ,HQ,RQ,PQ,T2,T6,146,TT48 Etc





Core Drilling Tools / Diamond Reaming Shells , Surface Set And Impregnated





1. Introduction:



Reaming shell is set with natural or synthetic diamond, and it is used to couple the drill bit with the core barrel. Its main function is to ream the hole to the correct constant specific diameter which ensures adequate clearance for the core barrel and sufficient clearance for the new bit which replaces an old one. It also acts as a stabilizer for drill bit.



Reaming shells (with double pads or three pads) are suitable to use in all formation conditions ranging from broken and abrasive to consolidated and non-abrasive. As this kind of reaming shell is physically longer than the standard type, it is necessary to use an appropriate inner tube extension in order to compensate for the difference in overall reaming shell length.



Specialisted in producing varies kinds of diamond core bits in different international standard size for soft, medieum to hard rock formations.

With ISO certificate & quality control.




2. Avaliable Size of reaming shells:



Item Diamond bit REAMING SHELL
“Q”series wireline size Bit set OD Bit set ID
mm inch mm inch    mm inch
AQ 47.6 1.88 26.97 1.06 48 1.89
BQ 59.5 2.35 36.4 1.43 59.9 2.36
NQ 75.3 2.97 47.6 1.88 75.7 2.98
HQ 95.58 3.77 63.5 2.5 96 3.78
PQ 122 4.8 84.96 3.35 122.6 4.83
Swedish Metric T2 Series 36 36 1.417 22 0.866 36.3 1.429
46 46 1.811 32 1.26 46.3 1.823
56 56 2.205 42 1.654 56.3 2.217
66 66 2.598 52 2.047 66.3 2.61
76 76 2.992 62 2.441 76.3 3.004
86 86 3.386 72 2.835 86.3 3.398
101 101 3.976 84 3.307 101.3 3.988
Swedish T Series TAW 47.6 1.875 23.2 1.31 48 1.89
TBW 59.5 2.345 44.9 1.77 59.9 2.36
TNW 75.3 2.965 60.5 2.38 75.7 2.98




BQ HQ NQ PQ Core Drilling Tools Reaming Shells Surface Set Impregnated reamer 0
