34mm 7 buttons Tapered Drill Bits Top Hammer Drilling for marble quarry

5pcs
MOQ
34mm 7 buttons Tapered Drill Bits Top Hammer Drilling for marble quarry
ميزات صالة عرض منتوج وصف طلب عرض أسعار
ميزات
مواصفات
تسليط الضوء:

,كور ملموسة مثقاب

,

concrete core drill bit

معلومات اساسية
مكان المنشأ: CHINA
اسم العلامة التجارية: ROSCHEN
إصدار الشهادات: ISO9001
رقم الموديل: 20~76mm
شروط الدفع والشحن
تفاصيل التغليف: wooden box, plastic box
منتوج وصف

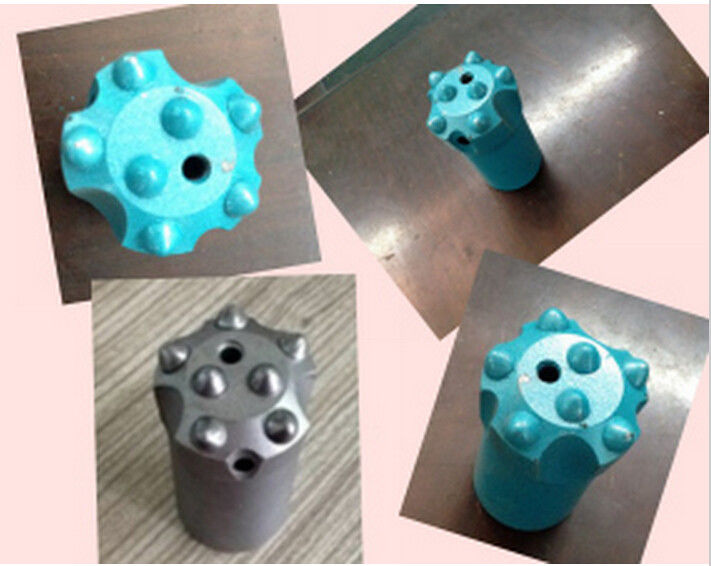

34mm 7 buttons Tapered Drill Bits Top Hammer Drilling for marble quarry





Processing Type: Forging
Application: Mine Drilling, Coal Mining, Quarrying




Specifications:


1. Dia: 20mm, 22mm, 25mm, 28mm, 30mm, 32mm, 34mm, 36mm, 38mm, 40mm, 42mm, 45mm rock drill taper button bits
2. Type: Taper button bits
3. Taper button bits for rock drilling
4. OEM your brand


Rock Drill Tapered Button Bits is suitable for H22mm and H25mm taper rock drill rods use. It have three taper connection: 7°, 11°, 12°. It's widely used for hard rock (f=8 ~ 18) drilling use.


1) Tapered connection: 7 degree, 11 degree, 12 degree
2) Alloy steel: 42CrMo
3) Suitable carbide tips: YK20, Yk05
4) Cross bit diameter: 30-42mm
5) Button Qty: 7 Buttons
6) Technology: hot-pressing or welding




1.Product Name: tungsten carbide drill bits


Types: Tapered chisel drill bits, Tapered cross drill bits, Tapered button drill bits
2. Application: Tapered drill bits are used in granite and marble quarry, gold mine, railway, tunnel, etc. for drilling
3. Feature: Tapered drill bits connect tapered drill steel of rock drill for drilling holes
4. Material: High quality carbide and high quality steel
5. MOQ: No requirement for testing and trial order

We can design and manufature according to your requirment of diameter, number air holes and carbide button shape.

34mm 7 buttons Tapered Drill Bits Top Hammer Drilling for marble quarry 0
